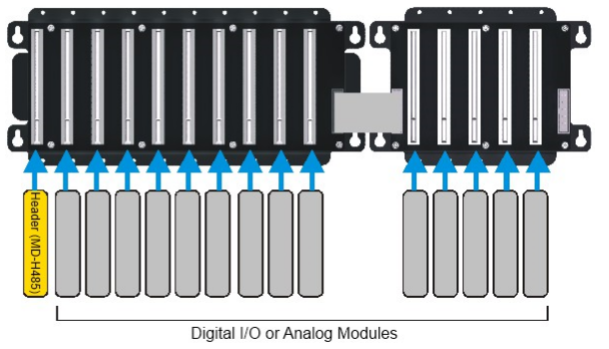

The Header Module (MD-H485) must be mounted on the far left of the 10-slot main board in the position labeled “CPU”, I/O modules can be installed in any of the remaining slots.

Please be sure to secure all modules to the slot board with screws.

MODPORT
