modularfaduino:dimension

Table of Contents

Dimensions

Dimensions

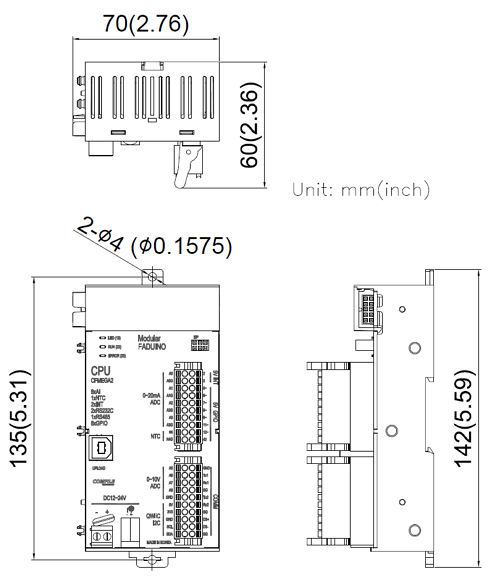

CPU Module

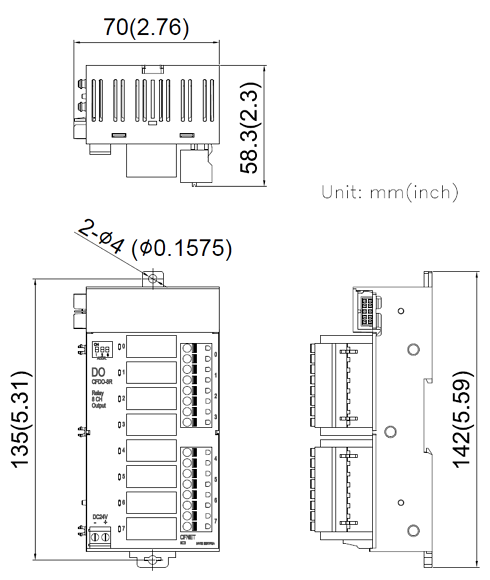

I/O Module (Middle size)

I/O Module (Big size)

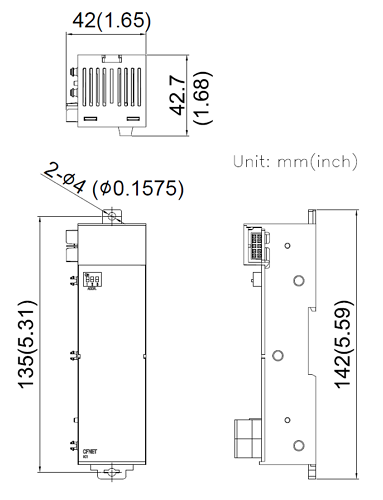

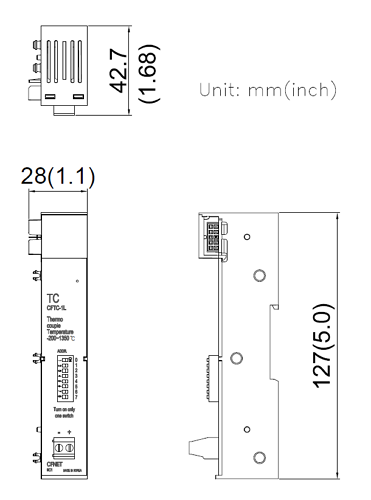

I/O Module (Small size)

Modular FADUINO
