CPi-J IO Features
Rear Panel IO

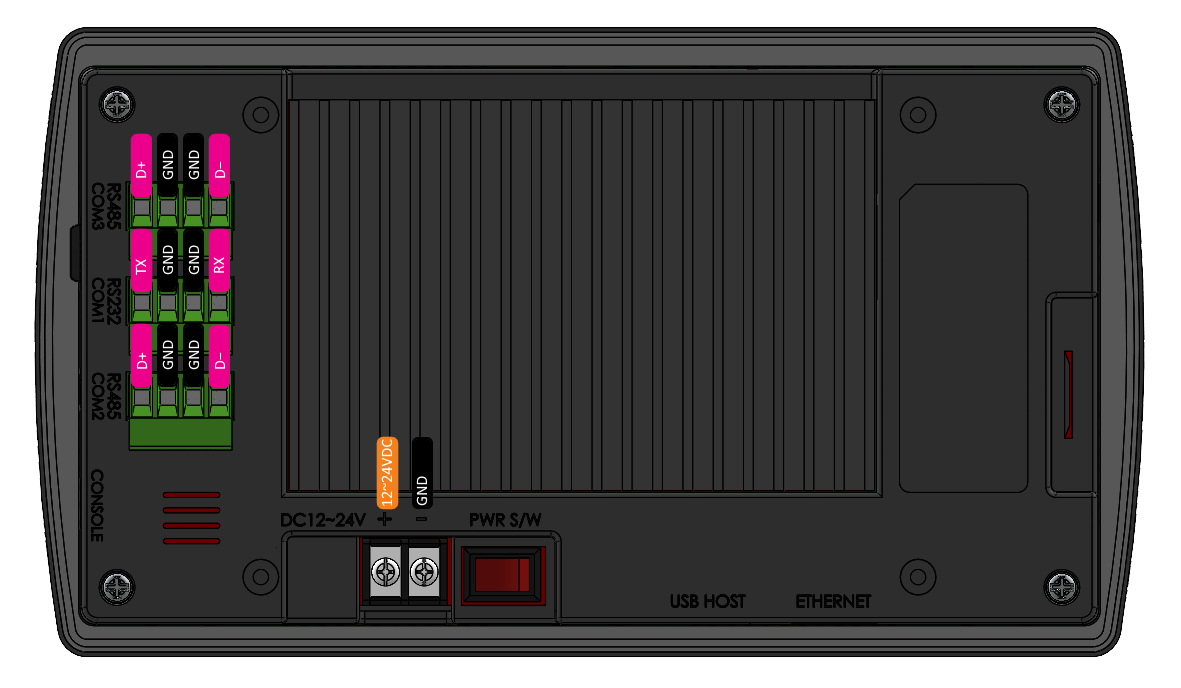

The CPi-J series panel PCs expose 1 RS-232 port and 2 RS-485 ports on its rear panel.
Underside IO

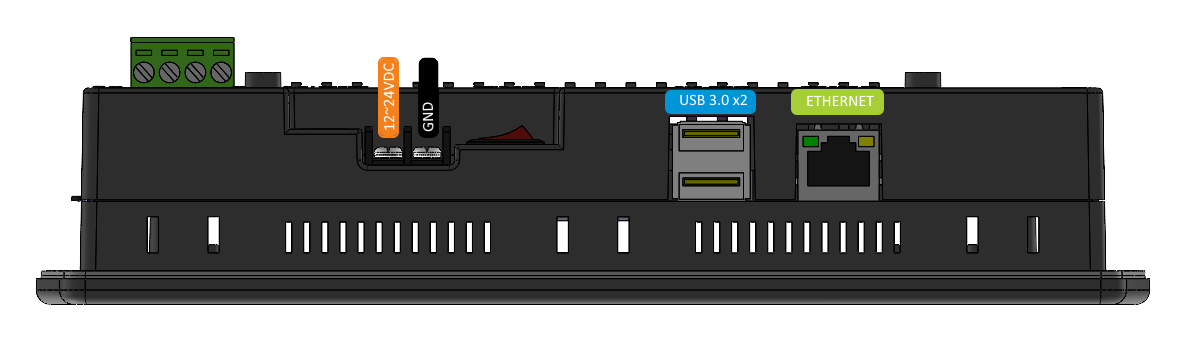

The underside of the CPi-J exposes 12~24VDC power input, 2 USB 3.0 host ports, and an RJ45 1Gbps Ethernet port.
Side Panel IO

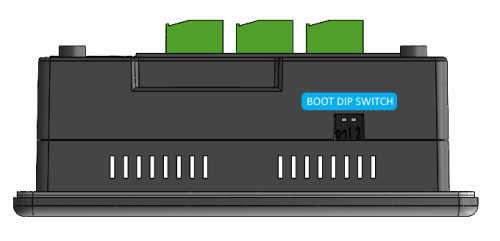

The left panel of the CPi-J panel PCs expose boot selection DIP switch.
| DIP Switch Position | Description | |
|---|---|---|
| 1 | 2 | |
| OFF | OFF | Boots from the internal eMMC |
| ON | OFF | Boots from a USB Drive |
| OFF | ON | Boots from the internal NVME Drive |
| ON | ON | Reserved |

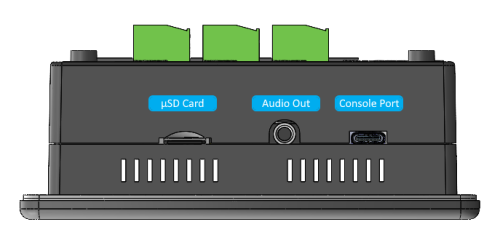

The right panel of the CPi-J panel PCs expose a MicroSD card slot, stereo audio output jack, and USB-C console port. (/dev/ttyAMA0)
