FADUINO-18TA is a board-type industrial controller based on the ATmega328P microcontroller. Memory: 32 KB program memory, 2 KB SRAM, 1 KB EEPROM. Serial ports: RS-232 = 1 port, RS-485 = 0 ports. I2C: 0 ports. Digital inputs: DC 24 V input = 8 channels, interrupt input = 0 channels. Digital outputs: NPN transistor output = 4 channels, output rating = 24 V / 100 mA per channel. GPIO (5 V): 6 pins (shared with ADC). Analog inputs: 0–5 V = 6 channels. PWM outputs: 0 channels. Power: DC 12–24 V, typical current consumption = 0.1 A. Certification: None.

FADUINO-32TA is a board-type industrial controller based on the ATmega2560 microcontroller. Memory: 256 KB program memory, 8 KB SRAM, 4 KB EEPROM. Serial ports: RS-232 = 2 ports, RS-485 = 1 port. I2C: 1 port. Digital inputs: DC 24 V input = 16 channels, interrupt input = 2 channels. Digital outputs: NPN transistor output = 14 channels, output rating = 24 V / 100 mA per channel. GPIO (5 V): 6 pins (shared with PWM). Analog inputs: 0–10 V = 4 channels, 0–20 mA = 4 channels. PWM outputs: 6 channels (≤ 30 kHz). Power: DC 12–24 V, typical current consumption = 0.2 A. Certification: None.

FADUINO-12RA is an enclosed-type industrial controller based on the ATmega2560 microcontroller. Memory: 256 KB program memory, 8 KB SRAM, 4 KB EEPROM. Serial ports: RS-232 = 1 port, RS-485 = 0 ports. I2C: 1 port. Digital inputs: DC 24 V input = 8 channels, interrupt input = 0 channels. Digital outputs: Relay output = 4 channels, output rating = up to 10 A per channel (recommended ≤ 3 A). GPIO (5 V): 0 pins. Analog inputs: 0–10 V = 4 channels, 0–20 mA = 4 channels. PWM outputs: 0 channels. Power: DC 24 V, typical current consumption = 0.2 A. Certification: CE.

FADUINO-24RA is an enclosed-type industrial controller based on the ATmega2560 microcontroller. Memory: 256 KB program memory, 8 KB SRAM, 4 KB EEPROM. Serial ports: RS-232 = 2 ports, RS-485 = 1 port. I2C: 1 port. Digital inputs: DC 24 V input = 16 channels, interrupt input = 0 channels. Digital outputs: Relay output = 8 channels, output rating = up to 10 A per channel (recommended ≤ 3 A). GPIO (5 V): 0 pins. Analog inputs: 0–10 V = 4 channels, 0–20 mA = 4 channels. PWM outputs: 0 channels. Power: DC 24 V, typical current consumption = 0.4 A. Certification: CE.

FADUINO Series

Warning

The FADUINO is an Arduino¹⁾ compatible industrial controller.

Models

Item	FADUINO-18TA	FADUINO-32TA	FADUINO-12RA	FADUINO-24RA
MCU	ATmega328P	ATmega2560	ATmega2560	ATmega2560
Type	Board type	Board type	Enclosed type	Enclosed type
Program Memory	32 KB	256 KB	256 KB	256 KB
SRAM	2 KB	8 KB	8 KB	8 KB
EEPROM	1 KB	4 KB	4 KB	4 KB
RS-232	1 port	2 ports	1 port	2 ports
RS-485	—	1 port	—	1 port
Analog Inputs	0–5 V × 6 ch	0–10 V × 4 ch 0–20 mA × 4 ch	Same as 32TA	Same as 32TA
I²C	—	1	1	1
Power Supply	DC 12–24 V	DC 12–24 V	DC 24 V	DC 24 V
Current Consumption	0.1 A	0.2 A	0.2 A	0.4 A
Certification	None	None	CE	CE

Item	FADUINO-18TA	FADUINO-32TA	FADUINO-12RA	FADUINO-24RA
DC 24V Inputs	8 channels	16 channels	8 channels	16 channels
Interrupt Inputs	—	2 channels	—	—
Outputs	NPN transistor × 4	NPN transistor × 14	Relay × 4	Relay × 8
Output Rating	24 V / 100 mA	24 V / 100 mA	Max 10 A (recommended ≤ 3 A)	Same as 12RA
GPIO (5 V)	6 (shared with ADC)	6 (shared with PWM)	—	—
PWM	—	6 channels (≤ 30 kHz)	—	—

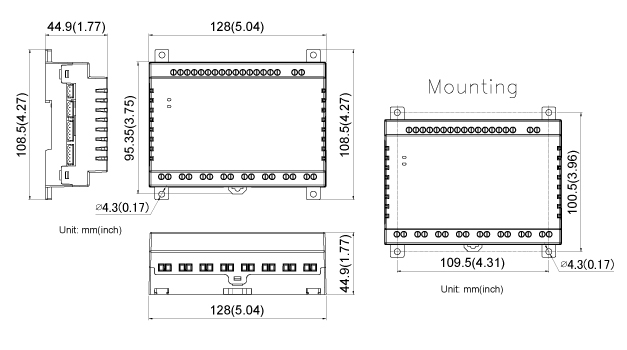

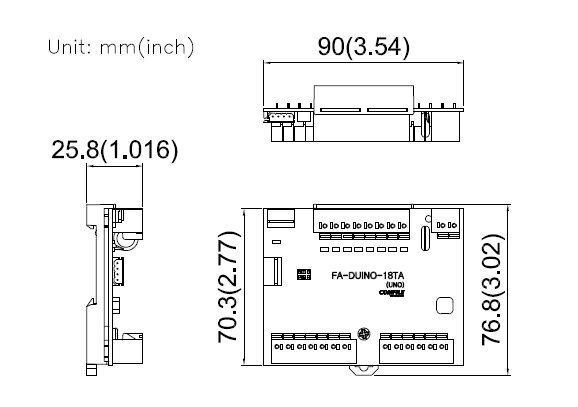

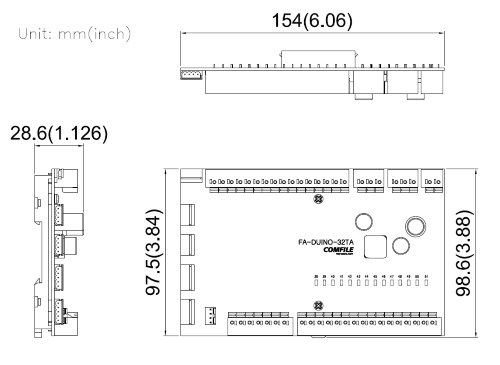

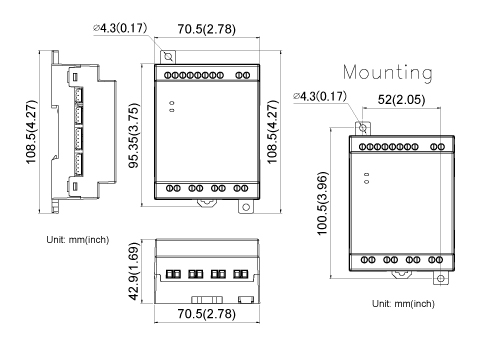

[FADUINO Mechanical Drawings (Dimensions)]

Hardware

General Usage

Example Programs

Interfacing with Peripherals

Technical Support Policy

Technical support for this product is only available without user source code. If you believe there is a problem with the product itself, please send the product without user source code to us. We will check the product you sent us using our test suite. Shipping costs are the responsibility of the customer.

If you need technical support for your source code, we will assign a professional engineer through a separate technical support contract and provide paid support. In this case, you must send us the hardware environment required for testing.

Purchasing and using this product constitutes agreement to this policy.
