CWA-070BR is a Windows CE industrial panel PC in the CWA Series. Display: 7-inch LCD. Enclosure: Bezel type. Processor: ARM926EJ running at 400 MHz. Memory: 128 MB SDRAM. Storage: 256 MB NAND Flash. Operating system: Windows CE 6 Core. Operating temperature range: 0 °C to 70 °C. Status: Available.

CWA-070WR is a Windows CE panel PC in the CWA Series. Display: 7-inch LCD. Enclosure: IP65 front protection. Processor: ARM926EJ at 400 MHz. Memory: 128 MB SDRAM. Storage: 256 MB NAND Flash. Operating system: Windows CE 6 Core. Operating temperature range: 0 °C to 70 °C. Status: Available.

CWA-102BR is a Windows CE panel PC in the CWA Series. Display: 10.2-inch LCD. Enclosure: Bezel type. Processor: ARM926EJ at 400 MHz. Memory: 128 MB SDRAM. Storage: 256 MB NAND Flash. Operating system: Windows CE 6 Core. Operating temperature range: 0 °C to 70 °C. Status: Available.

CUWIN-5200 is a 5K/6K Series industrial panel PC (discontinued). Display: 7-inch LCD. Enclosure: Bezel type. Processor: ARM926EJ at 533 MHz. Memory: 128 MB SDRAM. Storage: 128 MB NAND Flash. Operating system: Windows CE 6 Core. Operating temperature range: 0 °C to 70 °C. Status: Discontinued.

CUWIN-5500 is a 5K/6K Series panel PC (discontinued). Display: 7-inch LCD. Enclosure: IP65. Processor: ARM926EJ at 533 MHz. Memory: 128 MB SDRAM. Storage: 128 MB NAND Flash. Operating system: Windows CE 6 Core. Operating temperature range: 0 °C to 70 °C. Status: Discontinued.

CUWIN-6300 is a 5K/6K Series panel PC (discontinued). Display: 10.2-inch LCD. Enclosure: Bezel type. Processor: ARM926EJ at 533 MHz. Memory: 128 MB SDRAM. Storage: 128 MB NAND Flash. Operating system: Windows CE 6 Core. Operating temperature range: 0 °C to 70 °C. Status: Discontinued.

CWV2-070BR is a CWV2 Series industrial panel PC (discontinued). Display: 7-inch LCD. Enclosure: Bezel type. Processor: ARM Cortex-A8 at 1 GHz. Memory: 512 MB SDRAM. Storage: 4 GB eMMC. Operating system: Windows Embedded Compact 7 Pro. Operating temperature range: 0 °C to 70 °C. Status: Discontinued.

CWV2-070WR is a CWV2 Series panel PC (discontinued). Display: 7-inch LCD. Enclosure: IP65. Processor: ARM Cortex-A8 at 1 GHz. Memory: 512 MB SDRAM. Storage: 4 GB eMMC. Operating system: Windows Embedded Compact 7 Pro. Operating temperature range: 0 °C to 70 °C. Status: Discontinued.

CWV2-102BR is a CWV2 Series panel PC (discontinued). Display: 10.2-inch LCD. Enclosure: Bezel type. Processor: ARM Cortex-A8 at 1 GHz. Memory: 512 MB SDRAM. Storage: 4 GB eMMC. Operating system: Windows Embedded Compact 7 Pro. Operating temperature range: 0 °C to 70 °C. Status: Discontinued.

CWR-070WR is an industrial panel PC in the CWR Series. Display: 7-inch LCD. Enclosure: IP65 front protection. Processor: ARM Cortex-A9 dual-core at 1 GHz. Memory: 1024 MB SDRAM. Storage: 4 GB eMMC. Operating system: Windows Embedded Compact 7 Pro. Operating temperature range: 0 °C to 70 °C. Status: Available.

CUWIN - Windows CE & Windows Embedded Compact Industrial Touchscreen Panel PC

Warning

Overview

Windows CE panel PCs (also known as the CUWIN series) provide a more affordable alternative to Windows-based desktop panel PCs, while still offering sufficient performance and functionality to build professional user interfaces in a compact form factor.

Software for the CUWIN series can be developed using Microsoft Visual Studio 2008 Professional in C++ or C#/VB.NET with the .NET Compact Framework.

The CUWIN series offers several advantages over standard Windows 10/11 systems for industrial applications, including a more cost-effective platform, faster boot times, and a lightweight operating system optimized for stable and reliable operation.

Unlike conventional PC-based systems, CUWIN is designed to withstand unexpected power interruptions without system crashes and maintains dependable performance even in harsh industrial environments.

The CUWIN series has been widely adopted in medical devices, cosmetic equipment, and temperature and humidity control systems, and its reliability has been proven through extensive mass production and long-term field deployment.

Hardware Specifications

	CWA Series			5K/6K Series (Discontinued)			CWV2 Series (Discontinued)			CWR Series
	070BR	070WR	102BR	5200	5500	6300	070BR	070WR	102BR	070WR
LCD	7“	7”	10.2“	7”	7“	10.2”	7“	7”	10.2“	7”
Enclosure	Bezel	IP65	Bezel	Bezel	IP65	Bezel	Bezel	IP65	Bezel	IP65
MPU	ARM926EJ 400MHz			ARM926EJ 533MHz			Cortex-A8 1GHz			Cortex-A9 1GHz Dual
RAM	128MB SDRAM			128MB SDRAM			512MB SDRAM			1024MB SDRAM
Flash Memory	256MB NAND Flash			128MB NAND Flash			4GB eMMC			4GB eMMC
Operating System	Windows CE 6 Core									Windows Embedded Compact 7 Pro
Operating temperature	0°C ~ 70°C
Hardware Spec.	Details			Details			Details			Details
Dimensions	View	View	View	View	View	View	View	View	View	View
SDK	Download SDK			Download SDK			Download SDK			Download SDK
Buy	Buy			Buy			Buy			Buy

Important: To install the SDK, please install Visual Studio 2008 first. When installing the SDK choose Custom and remove the Documentation feature, or the SDK may not install correctly.

Getting Started

Connecting the CUWIN to a Host PC

OS Images, Flashing Utility, and Instructions

CUWIN OS images

Developing Software for the CUWIN

Setting up a Development Environment

Microsoft did not release the Smart Device Programmability tools for any Visual Studio release beyond Visual Studio 2008, so Visual Studio 2008 is the latest version of Visual Studio that can be used to program Windows CE 6.0 devices like the CUWIN.

For Windows CE 5, 6, and Windows Embedded Compact 7 API documentation, please see the Windows Embedded documentation at MSDN.

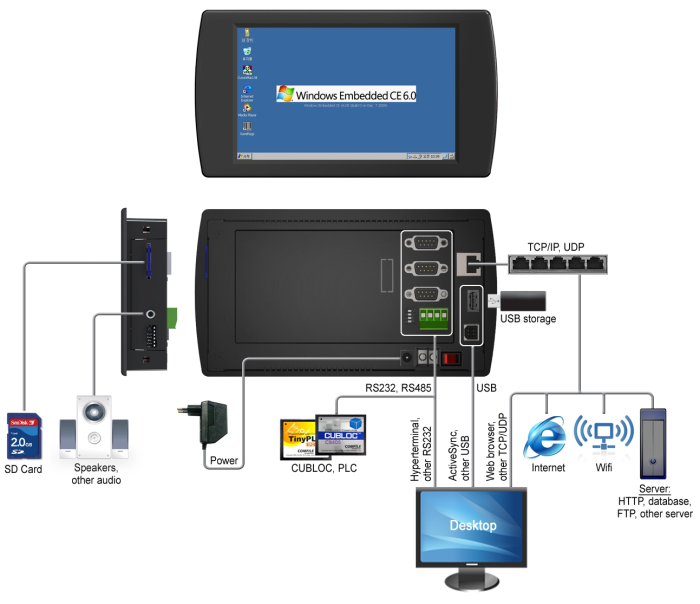

Interfacing the CUWIN to Other Devices

Miscellaneous

Additional Libraries

jControls CF35 - A free UI control library that overcomes many limitations of Windows CE and the .Net Compact Framework providing anti-aliasing, alpha blending, gradient fills, and more.
BeeMobile iPack - A commercial .Net Compact Framework UI control library.
NModbus - A free and open source Modbus communication library for the .Net Compact Framework (See Tutorial)

Mounting Instructions
