Set Spi

Set Spi clk, mosi, miso, mode

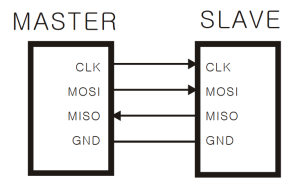

clk	port for clock output
mosi	port for data (Master output, Slave Input)
miso	port for data (Master input, Slave output)
mode	communication mode
	bit 3: 0 = MSB start, 1 = LSB start
	bit 2: 0 = wait at clock LOW, 1 = wait at clock HIGH
	bit 1: Output sample point; 0 = before rising edge, 1 = after rising edge
	bit 0: Input sample point; 0 = before rising edge, 1 = after rising edge

The Set Spi command must be used prior to the Spi command to ensure the I/O ports are defined prior to sending or receiving data.

Const Device = CB280
Dim Dtin As Byte
Set Spi 9,8,7,0
Dtin = Spi(Dtout,32)

For a more complete example, see the file C:\Program Files (x86)\ComfileTools\CublocStudio\CM100A in CUBLOC Studio's installation folder.
