WAND, DWAND
WAND s1, s2, d
DWAND s1, s2, d
These commands logically AND s1 and s2 and store the result in d. WAND divides word values and DWAND divides double word values.
| P | M | F | S | C | T | D | Constants | |
| s1 | O | O | O | O | ||||
| s2 | O | O | O | O | ||||
| d | O | O | O |

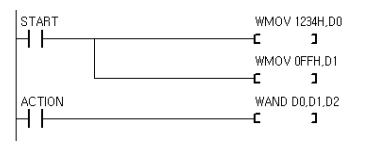

The results of execution of LADDER above:
