Study Board 3
The Study Board 3 is an IO board designed for learning, evaluation, and development with CUBLOC core modules. View product page
Key Features
| Item | Description |
|---|---|
| Power Input | DC 9V ~ 12V |
| Supported Modules | CB220, CB320, CB280, CB380, CB400, CB05, CB405RT |
| On-board Components | LEDs, I2C display port, ADC potentiometer, piezo buzzer, push buttons |
| Communication Ports | RS-232 Channel 1 (communication), RS-232 Channel 0 (download / monitoring / communication) |
| IO Expansion | CUNET (I2C) for CLCD and CSG modules |
※ CB290 is not supported. ※ Simultaneous mounting of multiple CUBLOC modules is not supported.

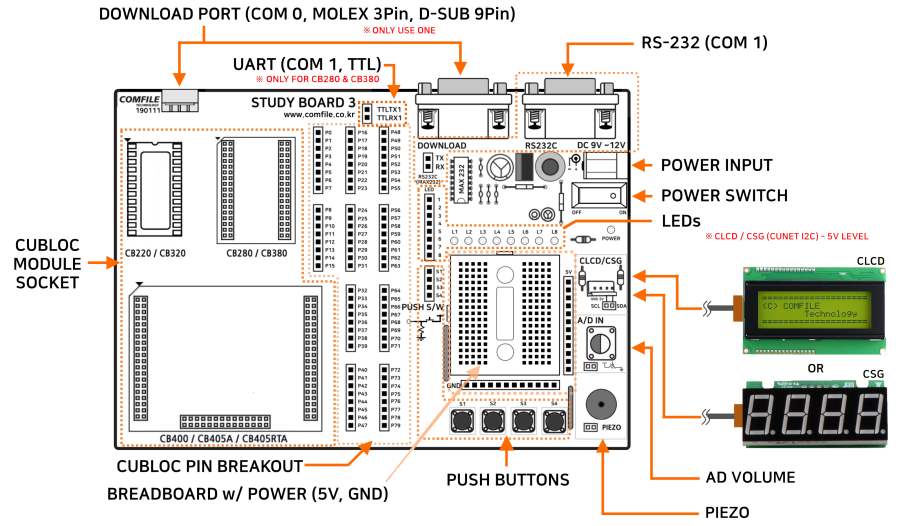

IO Layout

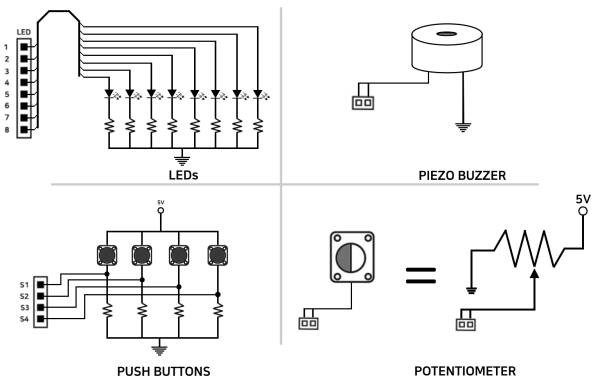

Circuit Diagram
The CUBLOC UART Channel 1 (COM1) is routed through a MAX232 level converter to the COM1 D-SUB connector.
