Interfacing with a Generic Microcontroller
- ComfileHMI Project Communication Settings
- Example

Interfacing with a Generic Microcontroller

The ComfileHMI's RS-232 ports are PC-level (+/-12V), so it may be necessary to adapter your MCU's 5V or 3.3V UART signals.

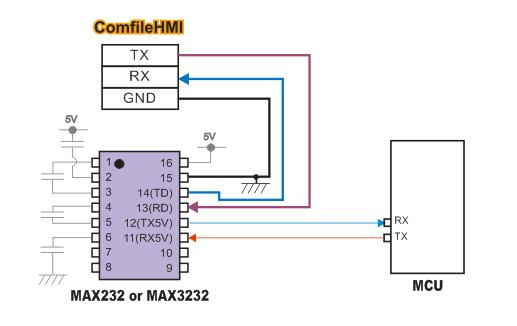

For adapting 5V levels, use aMAX232 or similar transceiver.
For adapting 3.3V levels, use aMAX3232 or similar transceiver.

ComfileHMI Project Communication Settings

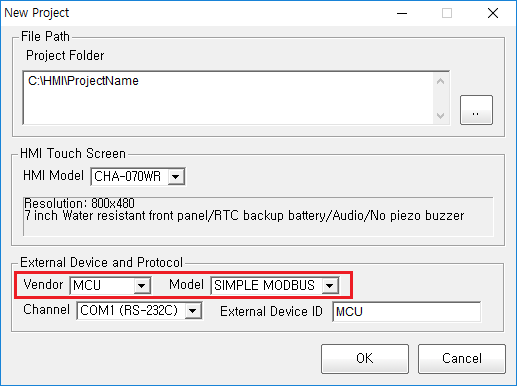

When creating a new project, select MCU and SIMPLE MODBUS.

More about Simple MODBUS.

Example
